A9
A9
- Productivity 8 test heads with fastest linear drive technology
- Stability Highly flexible shuttle system with tension option
- Flexibility Advanced back drill and active diode test capability
Description

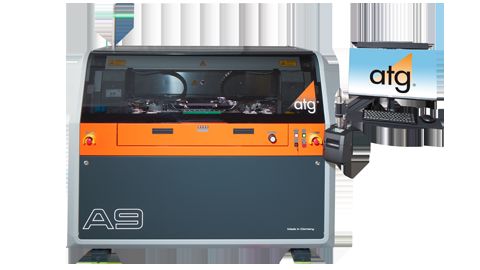

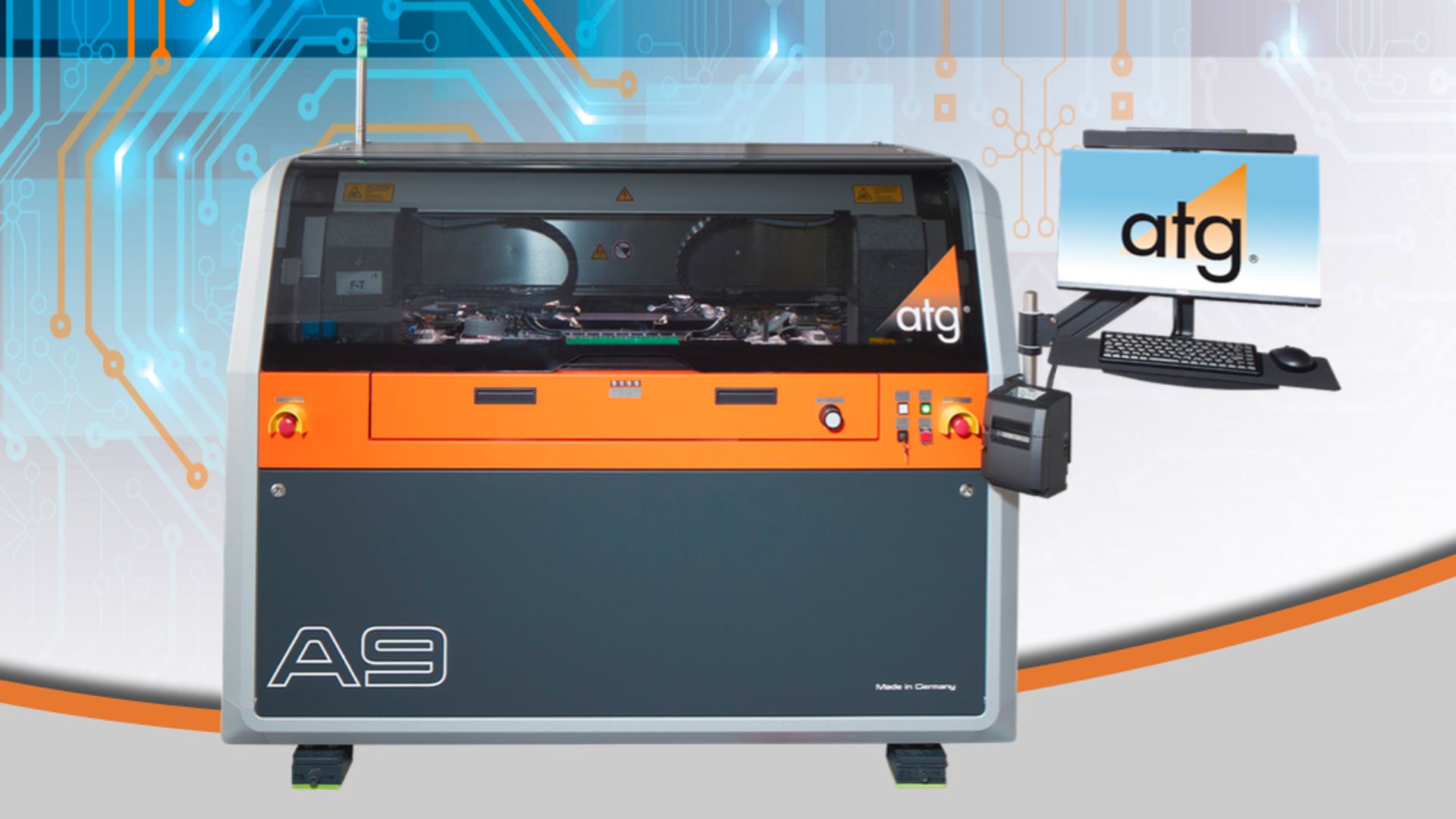

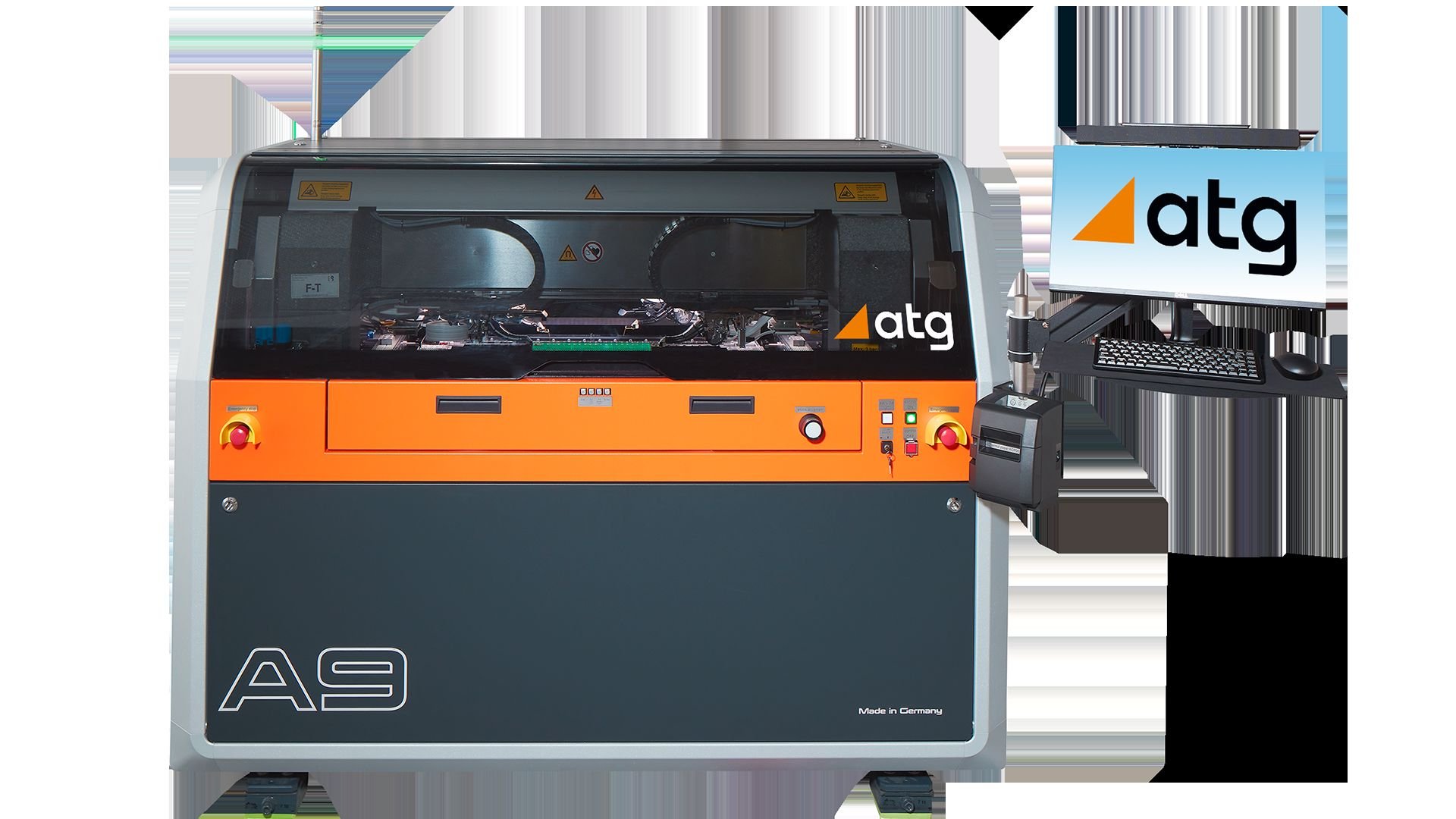

The A9 is our fastest PCB test system with a new powerful drive technology and granite base to ensure high accuracy. Even mid-size quantities of several 100 products can be tested efficiently, avoiding the need for fixture building.
Key benefits
- Granit base in combination with state of the art linear motor drives for X-, phi- and Z-movement
Outstanding test speed of 25 contacts per second per test head. Improved motion control with highest accuracy for advanced test functionalities like BackDrill test and active component testing.
Specification
|
8 test heads |
|
|
Linear motor drives for X-, phi- and Z-axis |
|
|
Granit base |
|
|
Max. test area |
610 mm x 510 mm (24" x 20") |
|
Max. product size |
640 mm x 535 mm (25.2" x 21.0") |
|
Test speed |
up to 220 TP/sec (depending on test method) |
|
4 high-resolution color XGA-cameras |
|
|
Smallest pad/pitch A9 |
35 µm*(1,4 mil) / 75 µm (3 mil) (* glass calibration) |
|
Soft touch contacting |
|
|
Micro short detection (MSD®) |
|
|
Pneumatic clamping / tension frame |
|
|
Options |
Embedded component test, Test floor integration with Universal Grid systems, High Speed Kelvin 4 wire test up to 300 mA*, LaTest® (Latent defect) |
