MRSI-LEAP High-Speed Die Bonder

MRSI-LEAP 1 µm High-Speed Die Bonders

  • Very high throughput
  • Exceptionally stable, ±1μm @ 3σ placement accuracy
  • Supports multiple wafer inputs and multiple automated tools changes

Applications & Features

  • The MRSI-LEAP is designed for high-volume manufacturing applications of optical modules, including Chip-on-Carrier (CoC), Chip-on-Submount (CoS), and Chip-on-Baseplate (CoB) assemblies utilizing epoxy stamping die bonding.
  • Placement accuracy is ±1 µm @ 3σ with pick & place throughput exceeding 1,000 UPH.
  • Material input methods include wafer, Waffle pack, Gel-Pak®, and customized fixtures.
  • Built-in conveyor designed for single fixture or multiple cassette inputs to automatically transport large carriers of substrates for Active Optical Cables (AOC) or similar chip-on-printed circuit board (PCB) applications, gold-box packaging, and CoC assemblies in fixtures.
  • Flip-chip bonding, UV epoxy dispensing, in-situ UV curing, wafer-level packaging, and other processes are available.

Value to our Customers

  • Industry-leading throughput and ultra-high accuracy in high-volume manufacturing, with a pick-and-place process capable of achieving over 1,000 units per hour (UPH).
  • The machine achieves an accuracy of ±1µm at 3σ, ensuring long-term stability and high precision.
  • Easy to use icon-based interface running on a Windows™ platform for ease of programming, and low-cost machine maintenance.
  • Industry-leading local technical support teams and application expertise
  • 40+ years of experience in the industry with reliable 24/7 field operation

Configuration Highlights

  • Advanced machine vision and tool design
  • Modular design and field upgradeable
  • Supports two 8-inch wafers and two 6-inch wafers
  • Built-in conveyor and magazine design for high efficiency and throughput
  • Automated dispensing and UV cure options available



Images

Brochure

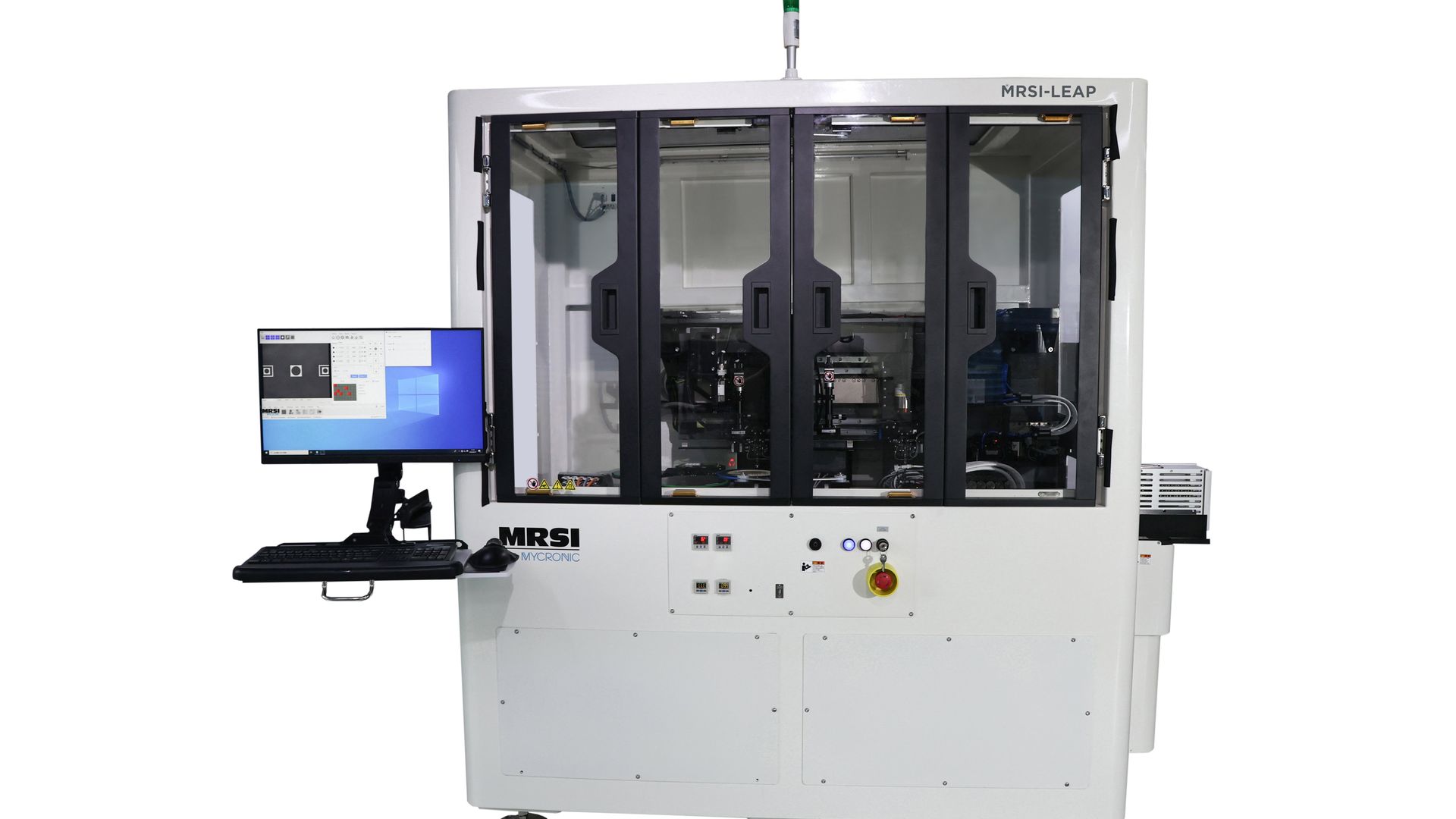

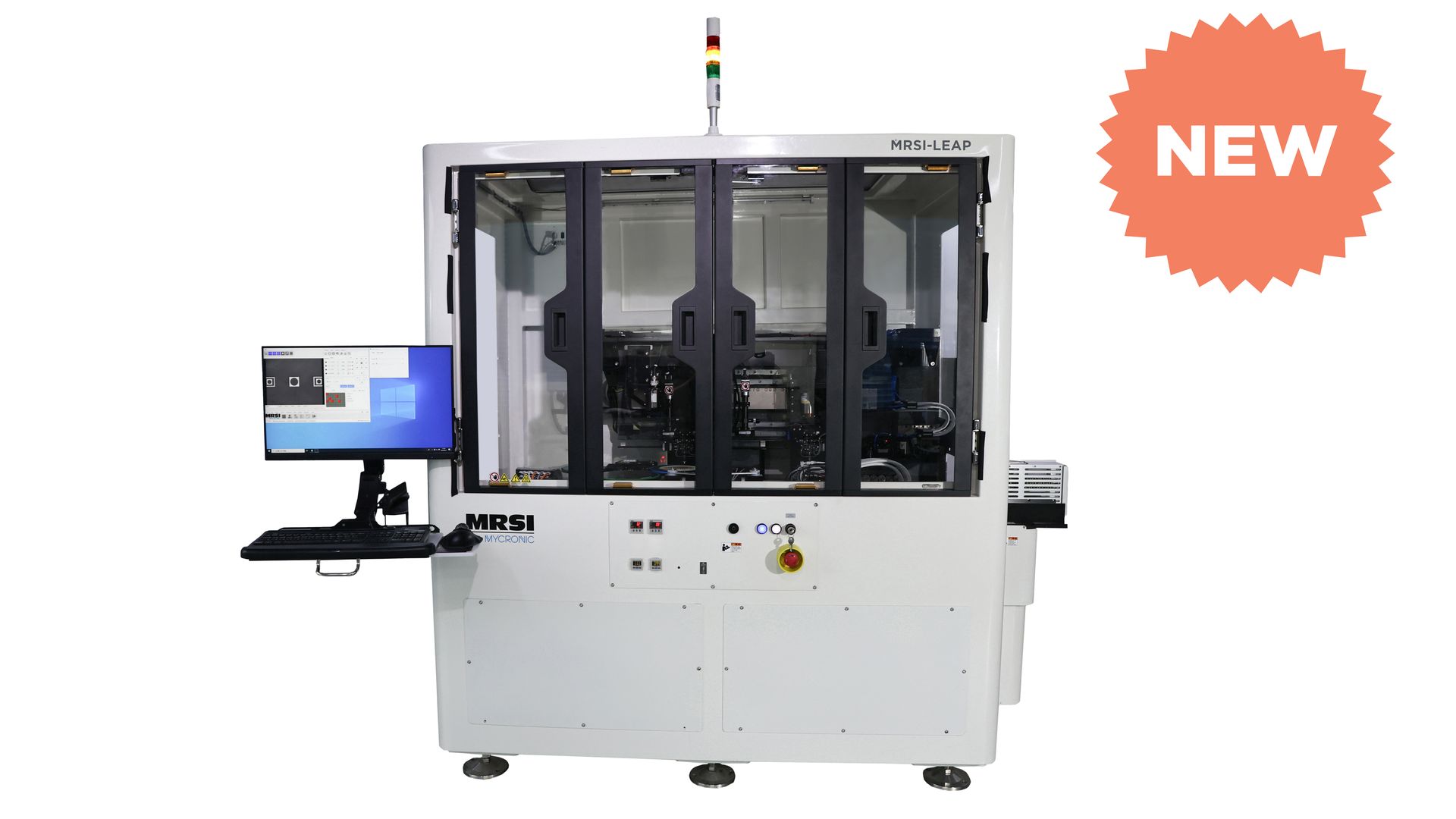

MRSI-LEAP High Speed Die Bonder

MRSI-LEAP

For detailed Data Sheets please contact Sales.
