A7a Pro

A7a Pro

A7a Pro

  • Productivity Fully automatic tester using A7 Pro technology
  • Stability Tension option for flexible PCBs available
  • Flexibility Supports test at panel and final board stage

Description

The automated A7a Flying Probe Test System provides highest flexibility. It is designed for the fully automated test of production panels and final products while at the same time offering all other benefits of the A7 Pro series.

Key benefits

  • Most successful automation for high volume or high mix/low volume

Set up of multiple part numbers without panel count and size restriction by 2D code recognition.


Specification

Fully automated test system with loader and separation of good and bad boards

8 test heads



Linear motor drives for X- and Z-axis



Stepper motor technology for phi-axis



Max. test area

610 mm x 510 mm (24" x 20")

Max. product size

635 mm x 535 mm (25" x 21")

Throughput up to

52 PCB per hour (average 4.000 test points per board)

Options

Good and bad board identification by 2D Barcode label, automatic tension bars


Brochures

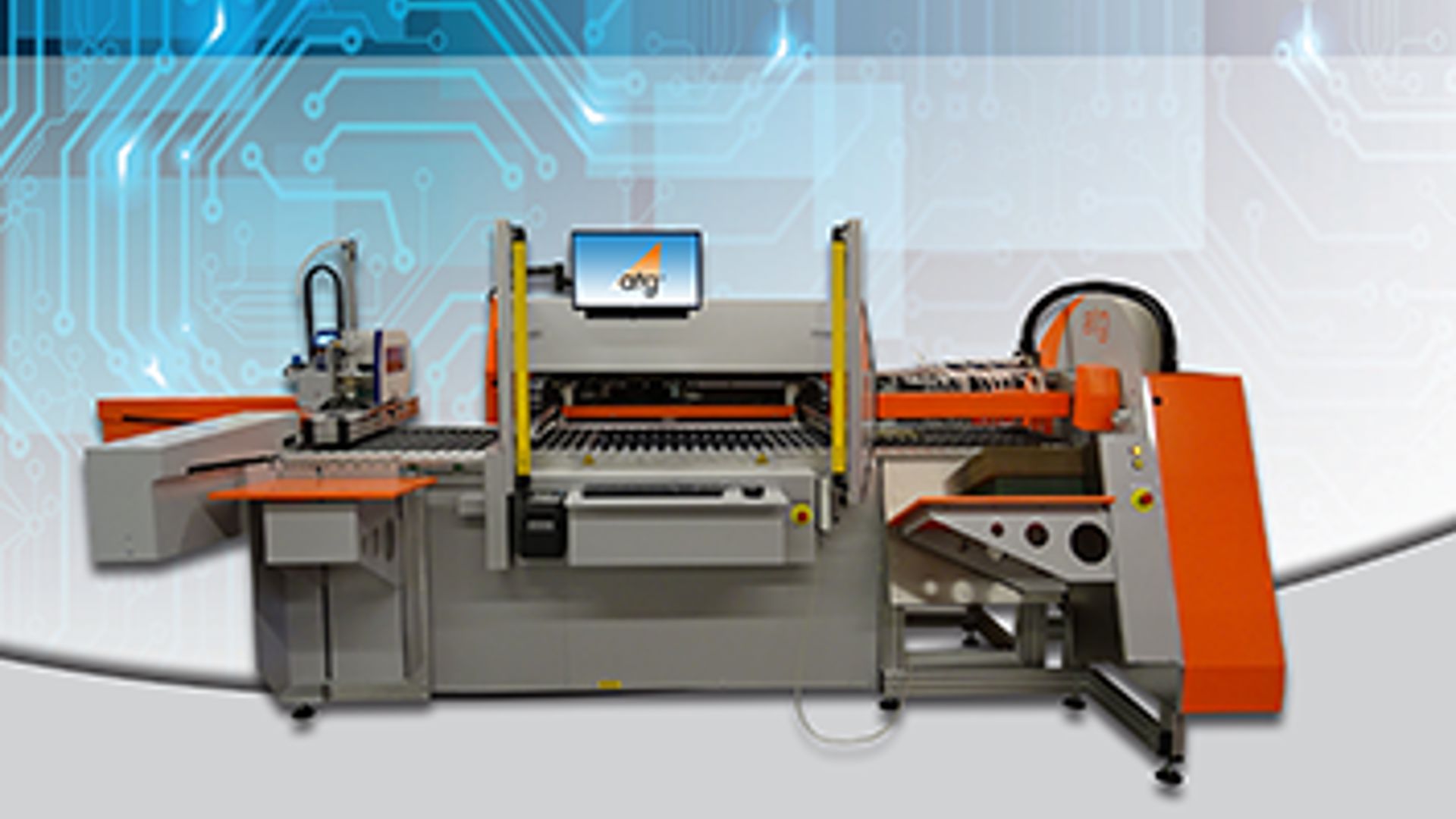

A7a Pro

A7a Pro

Download

Services

Service for Barebord testing

Superior service for superior performance

Our service offering for our advanced Barebord testing is a key part of our commitment to our customers. Our objectives are to maximize throughput, performance and yield for the lifetime of every system installed.
