A9a
A9a
- Productivity Fully automatic tester with highest throughput
- Stability Dual Shuttle system with zero seconds product exchange time
- Flexibility Supports automatic slip-sheet handling
Description
The fully automated A9a, 8-head, double-sided, high-speed, high-accuracy flying probe test system features state-of-the-art technology.
The electrical test system enables to test of the latest ultra-fine designs while helping to reach industry-leading automation goals.
A9a can test pad sizes down to 50 microns and is capable of testing products up to a size of 19" x 16.5" in automation mode and 24” x 21” in manual mode. The A9a eliminates limitations due to test point density or fine-pitch contacts and features embedded component test, 4-wire Kelvin measurement capability with an accuracy of +/- 0,025 mΩ +/- 2%, HiPOT, and latent testing.
Test speeds of up to 220 measurements/second in combination with a “lights-out” automated handling solution enable the test of larger production runs. A key feature of the A9a is a dual shuttle system, which reduces the product exchange time to zero seconds in automation mode.
Key benefits
- Pick and Place automation for products in final a product stage
Capability to test production panel size up to 24" x 21" in manual mode
Best price / performance ratio
Latest generation in advanced technology
8 ultra light carbon fiber test heads
Fully automatic “Lights-out” operation
High performance linear motion
Granit base for high accuracy and repeatability
Specification
Fully automated test system with loader and separation of good and bad boards |
|
8 test heads |
|
Linear motor drives for X-; phi- and Z-axis |
|
Max. test area auto mode |
480 mm x 420 mm (18.9" x 16.5") |
Max. test area manual mode |
610 mm x 510 mm (24"x 20") |
Max. product size manual mode |
610 mm x 535 mm (24" x 21") |
Max. product size auto mode |
480 mm x 420 mm (18.9" 16.5") |
Throughput up to |
100 PCB per hour (average 4.000 test points per board) |
Options | Barcode label, Pen Marking Unit for each individual image, automatic tension bar, automatic sucker unit |

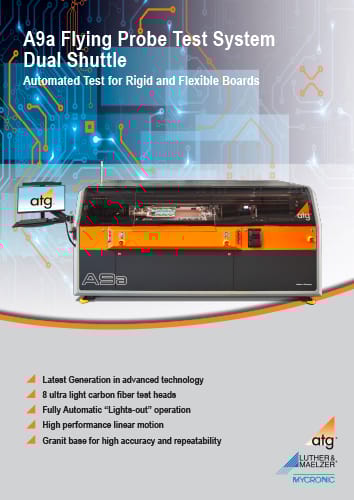

Brochures
