  • Productivity 4 ultra-light carbon test heads with air bearings
  • Stability Granit base frame for highest accuracy
  • Flexibility Supports high-end substrate applications

Description

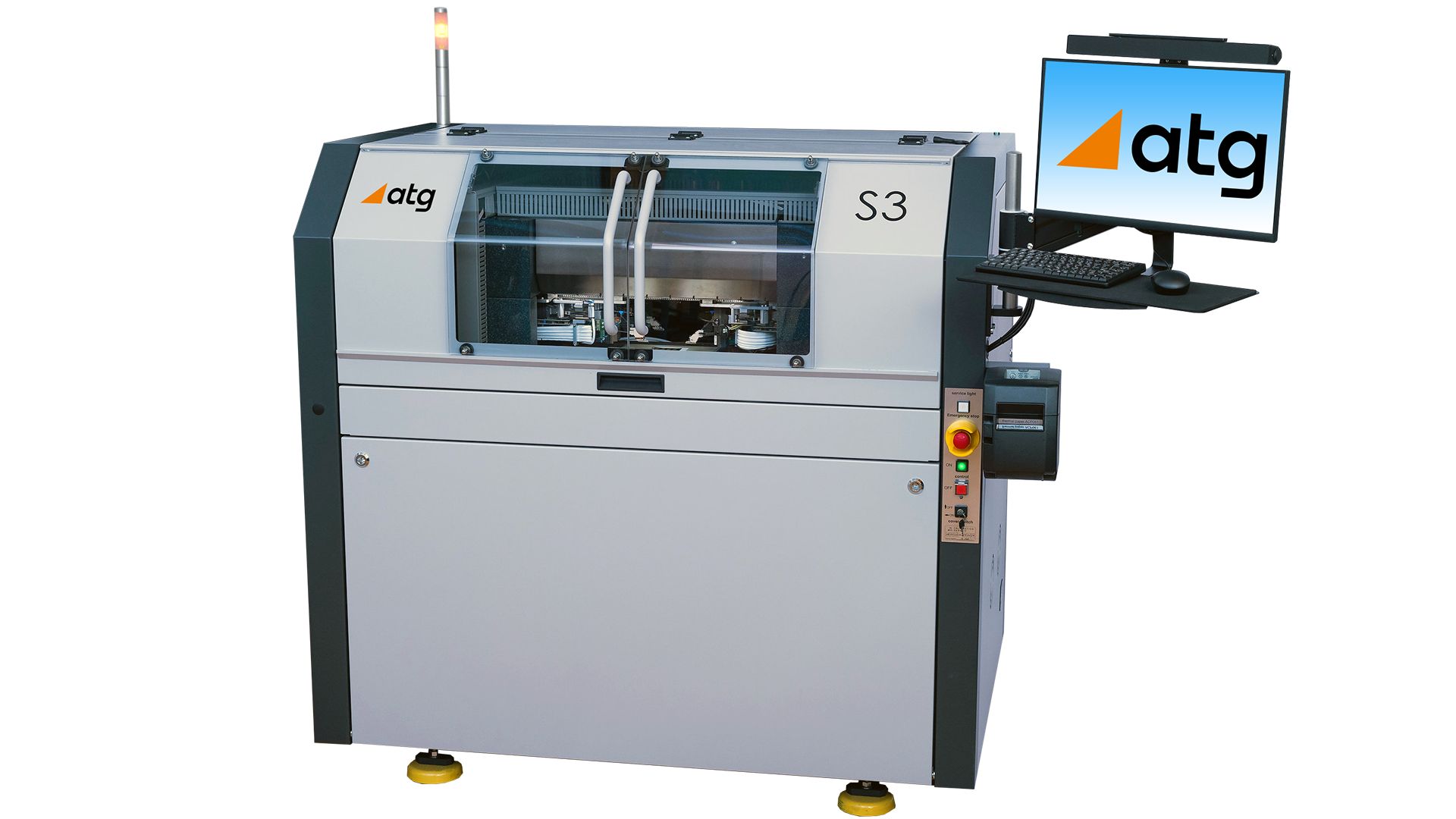

The S3 is able to test 10 µm structures while achieving 100 measurements per second. The machine, therefore, provides the customer with an economical test solution for high-end substrates.

The S3 has a granite frame, which provides the best temperature stability. The high-resolution cameras of 1.2  µm per pixel allow automatic scanning and testing of 10 µm.

Key benefits

  • Catering to the needs of substrate testing

The system combines accuracy and low witness marks with high throughput. The vacuum table allows easy handling of substrate and facilitates capacitance based testing.

Specification

4 test heads



Ceramic air bearings for ultra-precise and sensitive contacting



Max. test area mode

300 mm x 310 mm (11.8"x 12.2")

Max. product size

330 mm x 310 mm (13.0" x 12.2")

Vacuum table for reference-based test



Test speed

up to 120 TP/sec (depending on test method)

Smallest pad size

10 µm (0.4 mil)

Smallest pitch size

25 µm (1.0 mil)

5-megapixel high-solution camera with 1.2 µm/px



No visible witness marks without sacrificing test speed



Options



High-speed Kelvin 4 wire test up to 300 mA, Embedded component test SECS/GEM integration on demand



Customized automation setup on request

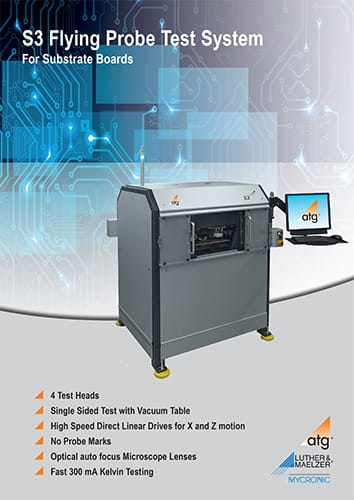

Brochures
