A7 Pro

A7 Pro

A7 Pro

  • Productivity 8 test head system with linear drive technology
  • Stability Highly flexible shuttle system with tension option
  • Flexibility Advanced LA-test and Kelvin-test capabilities

Description

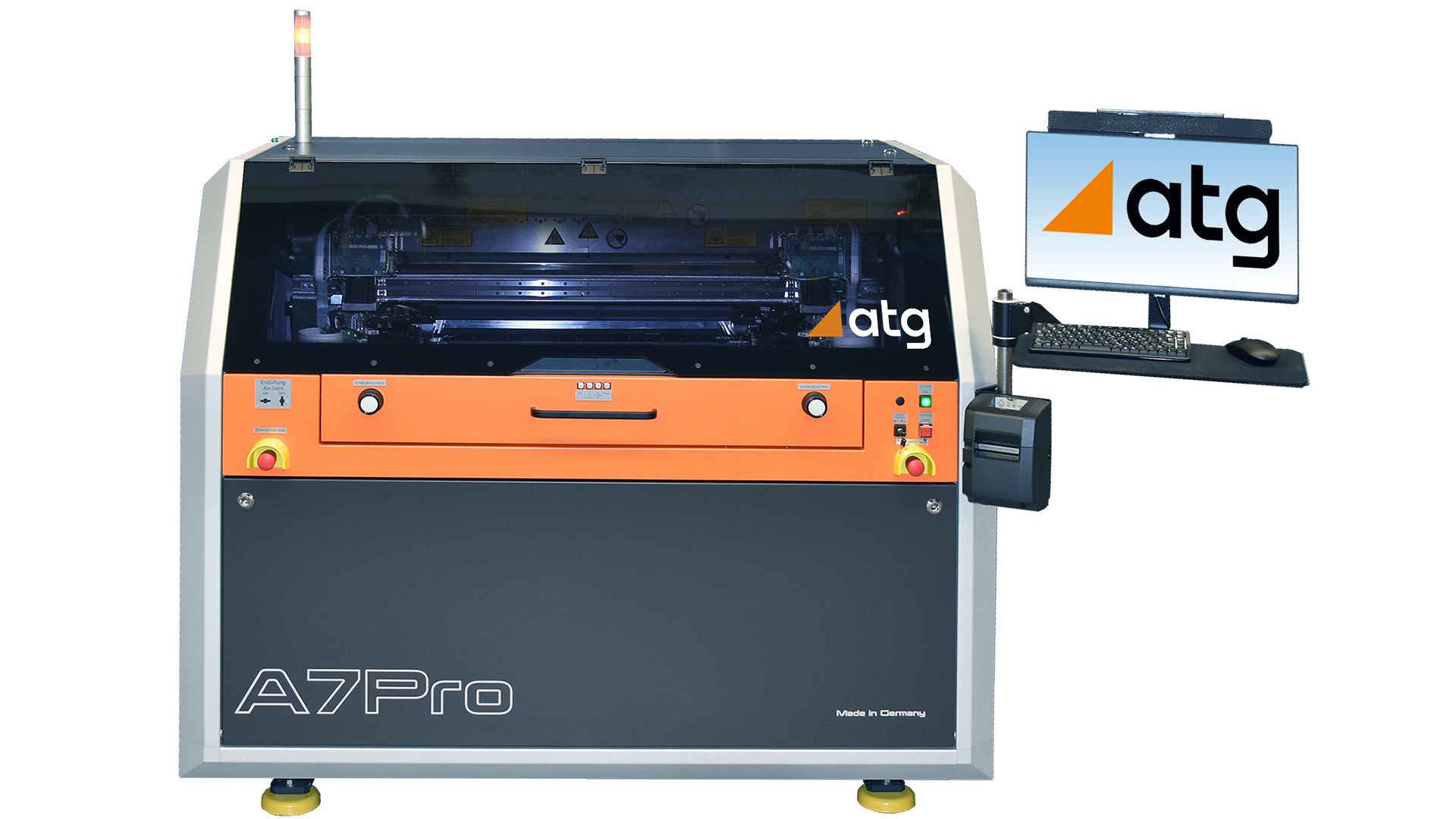

The newly launched A7 Pro is building on the success of the A7 tester but is now equipped with a fast internal Ethernet 1GB/s data transfer bus as well as new powerful rotation- and Z-axis drives. These provide a 20 % mechanical speed improvement over the original A7 model.

The standard A7 Pro is equipped with a tension shuttle for thin products, various high-voltage measurements and an universal test probe interface. The large test area of 24" x 20" provides the operator with the highest flexibility for daily test challenges.

Key benefits

  • Universal probe system with linear motor drives

Provides BackDrill- LA- 4 wire and cavity test capabilities. The test area of 24" x 20" allows testing in the production panel or final product stage.

Brochure

Brochure A7 Pro

Download

Specifications



8 test heads



Linear motor drives for X- and Z-axis



Stepper motor technology for phi-axis



Max. test area

610 mm x 510 mm (24" x 20")

Max. product size

640 mm x 610m (25.2" x 24.0")

Test speed

up to 140 TP/sec (depending on test method)

4 high-resolution color XGA-cameras



Smallest pad size

35 µm* (1,4 mil) (* glass calibration)

Smallest pitch

100 µm (4 mil)

Micro short detection (MSD®)

Pneumatic clamping / tension frame





Options

Embedded component test, Test floor integration with Universal Grid systems, High Speed Kelvin 4 wire test up to 300 mA*, LaTest® (Latent defect) and BackDrill testing
