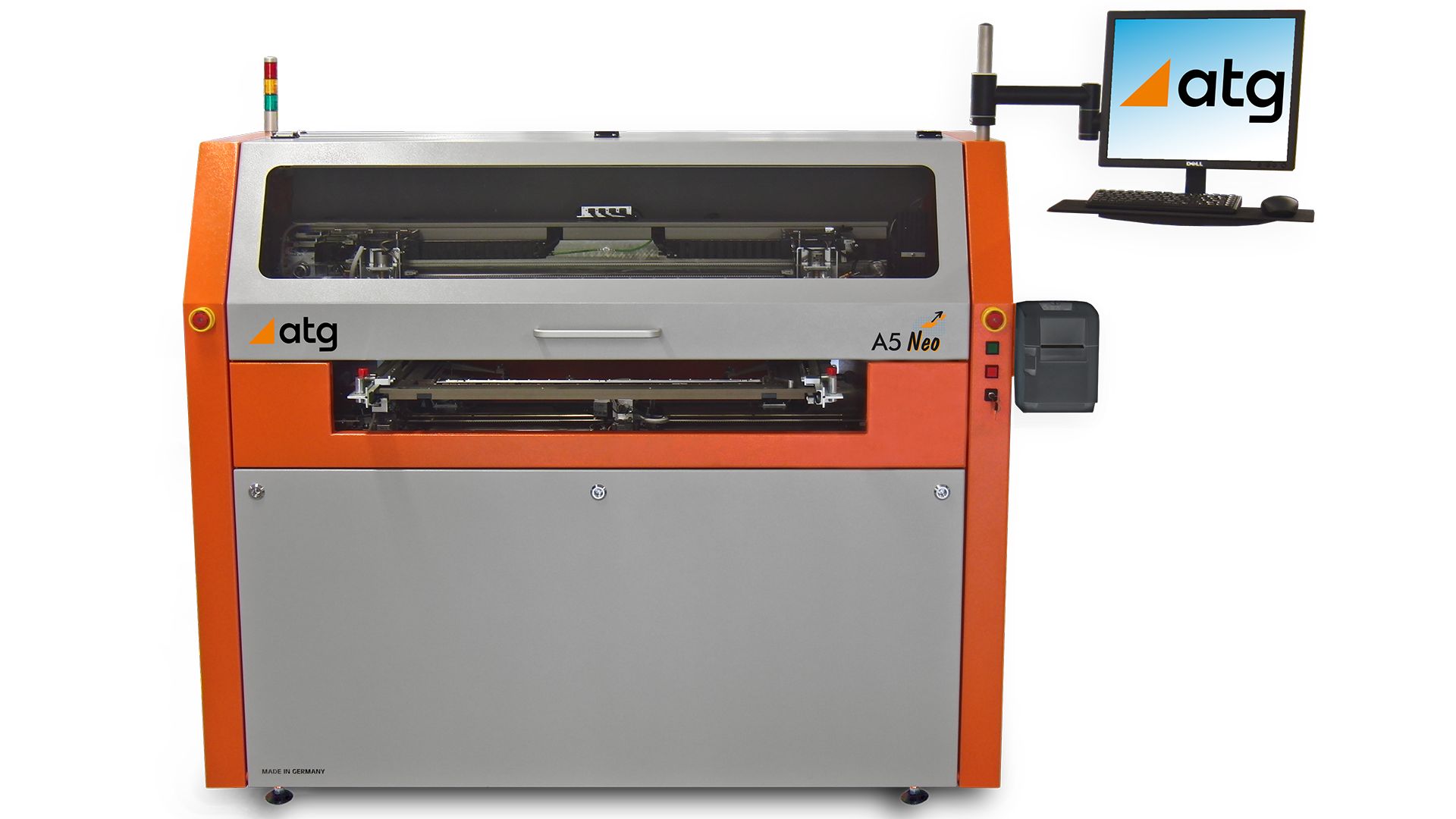

A5 Neo

A5 Neo

A5 Neo

  • Productivity 8 test head entry-level test system
  • Stability Highly flexible shuttle system with tension option
  • Flexibility High voltage capabilities

Description

The A5 Neo Flying Probe PCB tester combines affordable technology with all of the enhanced measurement methods of atg's Flying Probe systems.
The pneumatic tension shuttle of the A5 Neo allows the test of a wide range of products.

Key benefits

  • 8 Head test system for rigid and flexible products

Atg's rich application software provides a wide range of measurement functionality.

Brochures

A5 Neo

A5 Neo Flying Probe Test System For Rigid and Flexible Boards.

Download

Specification

8 test heads



Stepper motor technology



Max. test area

610 mm x 460 mm (24" x 18")

Max. product size

640 mm x 495 mm (25.2" x 19.5")

Test speed:

up to 75 TP/sec (depending on test method)

4 high-resolution color cameras



Smallest pad size:

50 µm (2 mil)

Smallest pitch:

100 µm (4 mil)

Soft touch contacting



Micro short detection (MSD®)



Pneumatic clamping / tension frame



1000 V High Voltage




Options: Embedded component test, Test floor integration with Universal Grid systems High-speed Kelvin 4-wire test up to 300 mA*, LaTest® (Latent defect)

Services

Service for Bare board testing

Superior service for superior performance

Our service offering for our advanced Bare board testing is a key part of our commitment to our customers. Our objectives are to maximize throughput, performance and yield for the lifetime of every system installed.
