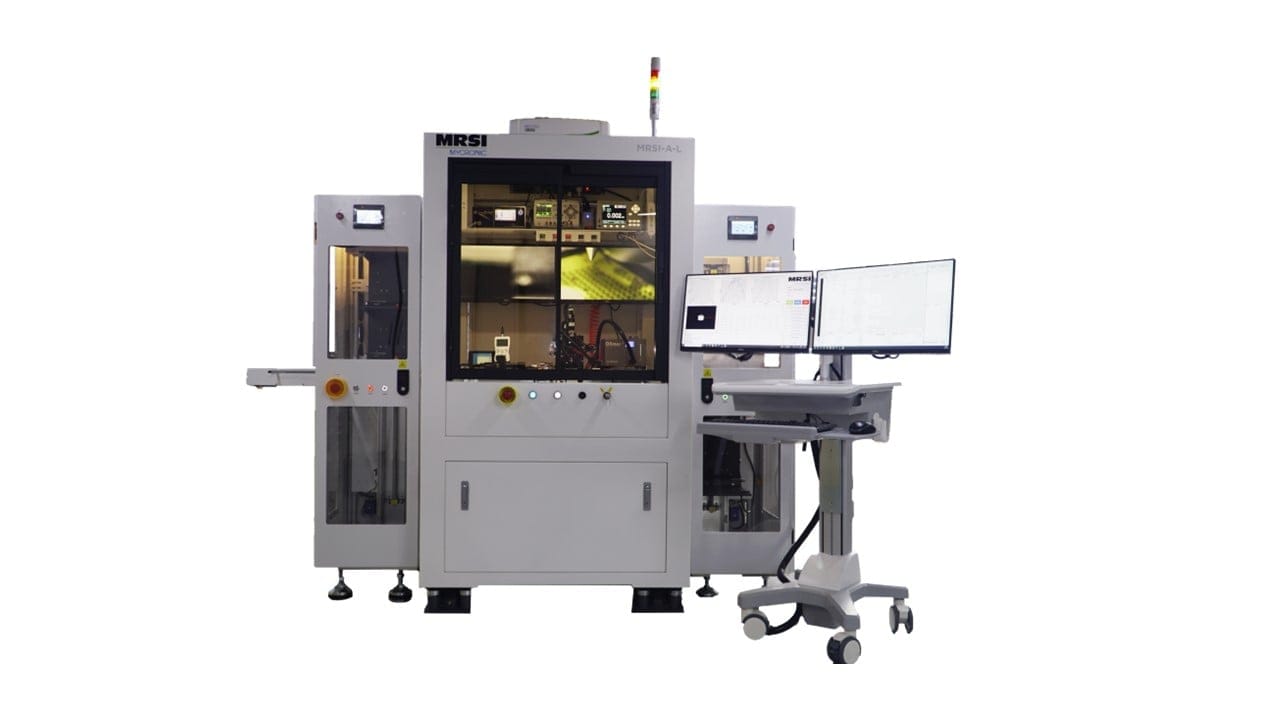

MRSI-A-L ACTIVE ALIGNER

MRSI-A-L ACTIVE ALIGNER

  • High precision passive pick & place
  • Precise dot or pattern dispensing
  • Precise active alignment in the nanometer and millidegree range

MRSI A-L is a modular machine, with integrated pick and place, dispense, vision, alignment functions, as well as intelligent software that offers flexible processes. It is a powerful tool for optical components assembly, such as transceivers, silicon photonics, AWGs, LiDAR, integrated optics etc.

Active aligner applications tend to be highly customized and MRSI is experienced in offering customized solutions.

Applications and Features

  • High precision passive pick & place
  • Single and/or dual optical components alignment
  • Precise dot or pattern dispensing
  • In-situ UV for curing
  • Precise reflective surface angular control of passively attached components
  • 6 degrees of freedom active alignment of optical components and chips
  • Precise active alignment in the nanometer and millidegree range
  • Easily programmed sequence editor controls all processes and settings
  • Turnkey integration

Value to our Customers

  • Industry-leading throughput, superior flexibility, and ultra-high-accuracy in high-volume, high-mix manufacturing, multiple process options
  • Experienced engineering team for customized design
  • Easy to use interface running on a Windows™ platform for ease of programming, and low-cost machine maintenance
  • Industry-leading local technical support teams and application expertise
  • 40+ years of experiences in the industry with reliable 24/7 field operation

Configuration highlights

MRSl-A-L is a dual 6-axis pick & place and active alignment station.

  • Proprietary close-loop optical angle control
  • Laser beam profile measurement and processing
  • Powerful machine vision
  • 1μm accuracy laser height detection
  • Auto dispense & UV cure

Images

Brochures

MRSI-A-L

For detailed Data Sheets please contact Sales.

MRSI-A-L
