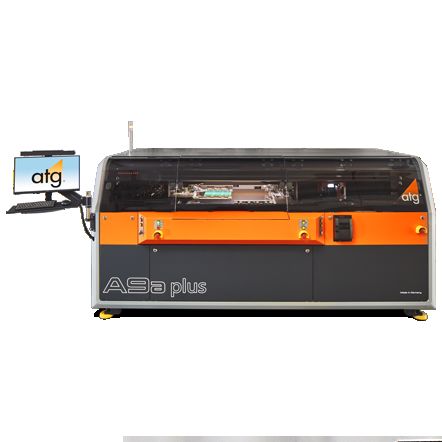

A9a plus

A9a plus

A9a plus

  • Productivity Fully automatic tester with highest throughput
  • Stability High resolution cameras 3µm / Px
  • Flexibility Supports automatic handling of SLP and sophisticated mSAP products

Description

The A9a plus is utilizing the same technology as the A9a and is in addition equipped with a temperature control unit and 4 high-resolution cameras. The system provides the accuracy to test reliably pad sizes down to 30 microns and is optimized for the test of Substrate-like-PCBs and similar products.

Key benefits

  • A9a technology with additional temperature control and high resolution cameras for maximum accuracy

Camera resolution of 3 micron per pixel compared to 6 micron of the standard A9.

Specification

8 test heads



High-resolution cameras with 3 microns per pixel



Max. test area auto mode

480 mm x 420 mm (18.9" x 16.5")

Max. test area manual mode

610 mm x 510 mm (24"x 20")

Max. product size manual mode

610 mm x 535 mm (24" x 21")

Max. product size auto mode

480 mm x 420 mm (18.9" x 16.5")

Throughput up to 100 PCB per hour (average 4.000 test points per board)


Options Barcode label, Pen Marking Unit for each individual image, automatic tension bar, automatic sucker unit

Brochures

A9a plus

A9a plus

Download
