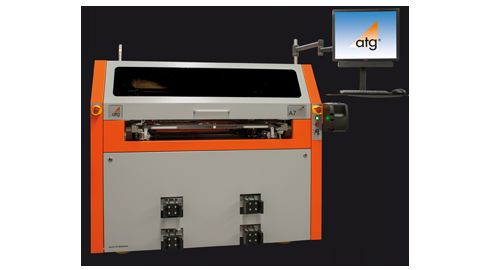

A7XW Pro

A7XW Pro

A7XW Pro

  • Productivity With up to 24 test heads
  • Stability Prepared for handling rigid and extreme heavy boards
  • Flexibility For products up to 60'' x 40'' board size

Description

Our unique rail concept allows a high test head density on even the largest boards, minimizing the test time for large products with high test point counts. For oversized products with test areas larger than 610 mm x 1000 mm we offer customized oversized systems with 16, 20 or 24 test heads and optional with a wide body. This allows test areas up to 1000 mm x 1500 mm. And all this with A7 Pro performance.

Key benefits

  • up to 24 test heads for test areas of 39.4" x 59"

The system combines outstanding test speed and high accuracy, while at the same time making available the broad range of test functionality typical for atg test systems.

Specification

Up to 24 test heads



Linear motor drives for X- and Z-axis



Stepper motor technology for phi-axis



Max. test area

Up to 1000 mm x 1500 mm (39.4" x 59.0")

Max. product size

On request

Services

Service for bare board testing

Superior service for superior performance

Our service offering for our advanced Bare board testing is a key part of our commitment to our customers. Our objectives are to maximize throughput, performance and yield for the lifetime of every system installed.
