  • Productivity Fully automatic tester with highest throughput
  • Stability Single Shuttle system with tension and clamping function
  • Flexibility Supports automatic slip-sheet handling

Description

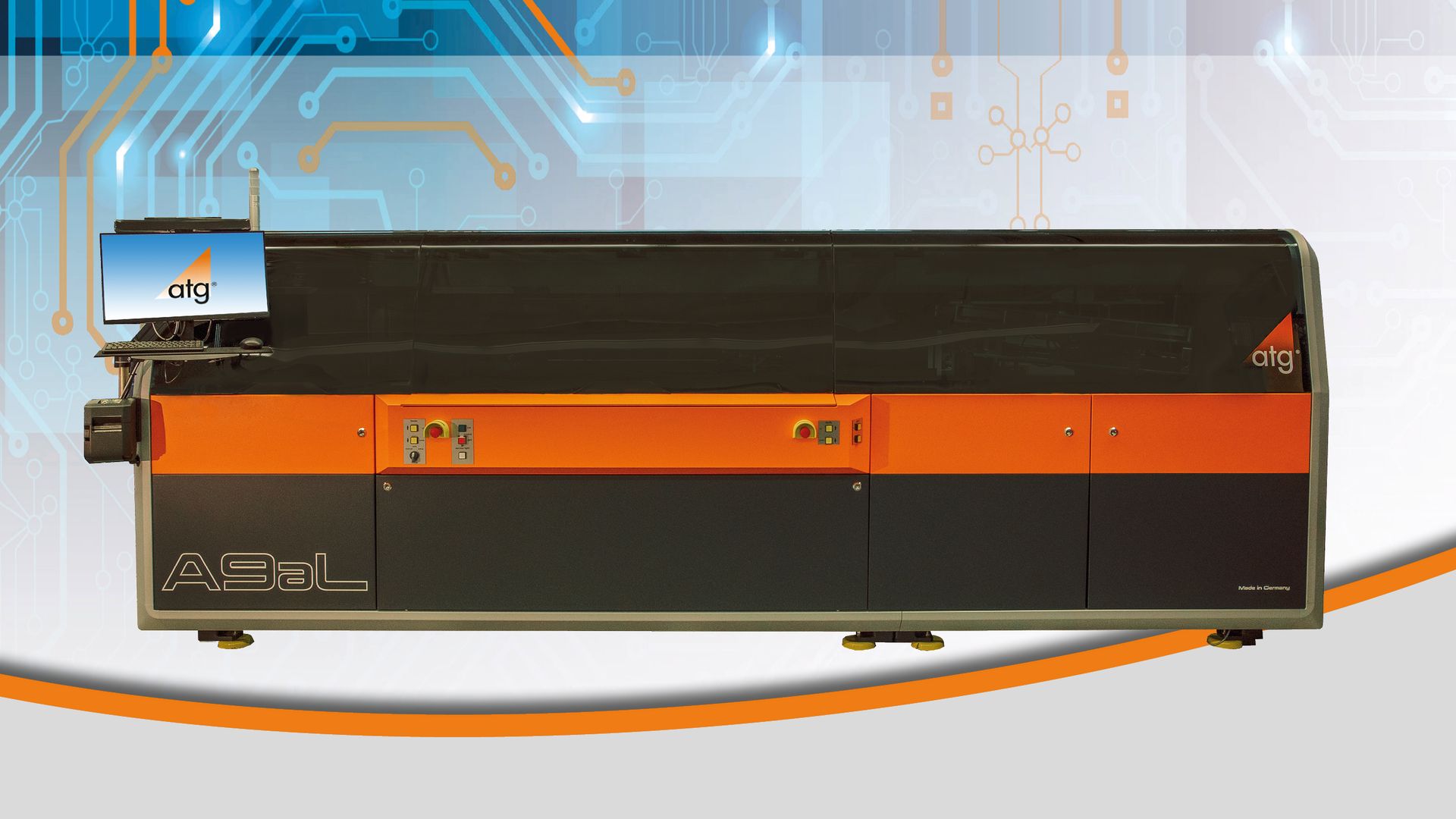

The fully automated A9aL, 8-head, double-sided, high-speed, high-accuracy flying probe test system features state-of-the-art technology.
The electrical test system enables to test of the latest ultra-fine designs while helping to reach industry-leading automation goals.

A9aL can test pad sizes down to 50 microns and is capable of testing products up to a size of 25” x 21” in automation and manual mode. The A9a eliminates limitations due to test point density or fine-pitch contacts and features embedded component test, 4-wire Kelvin measurement capability with an accuracy of +/- 0,025 mΩ +/- 2%, HiPOT, and latent testing.

Test speeds of up to 220 measurements/second in combination with a “lights-out” automated handling solution enable the test of larger production runs. A key feature of the A9aL is a universal tension and clamping shuttle system, which supports bended and flexible production panel test.

Key benefits

  • Pick and Place automation for products in final a product stage


Capability to test production panel size up to 24" x 21" in manual mode
Best price / performance ratio
Latest generation in advanced technology
8 ultra light carbon fiber test heads
Fully automatic “Lights-out” operation
High performance linear motion
Granit base for high accuracy and repeatability

Specification

Fully automated test system with loader and separation of good and bad boards



8 test heads



Linear motor drives for X-; phi- and Z-axis



Max. test area auto mode

610 mm x 510 mm (24" x 20")

Max. test area manual mode

610 mm x 510 mm (24"x 20")

Max. product size manual mode

635 mm x 535 mm (25" x 21")

Max. product size auto mode

635 mm x 535 mm (25" x 21")


Throughput up to

20 production panel per hour (average 15.000 test points per panel)
Options Barcode label, Pen Marking Unit for each individual image, automatic tension bar, automatic sucker unit
