A9 plus

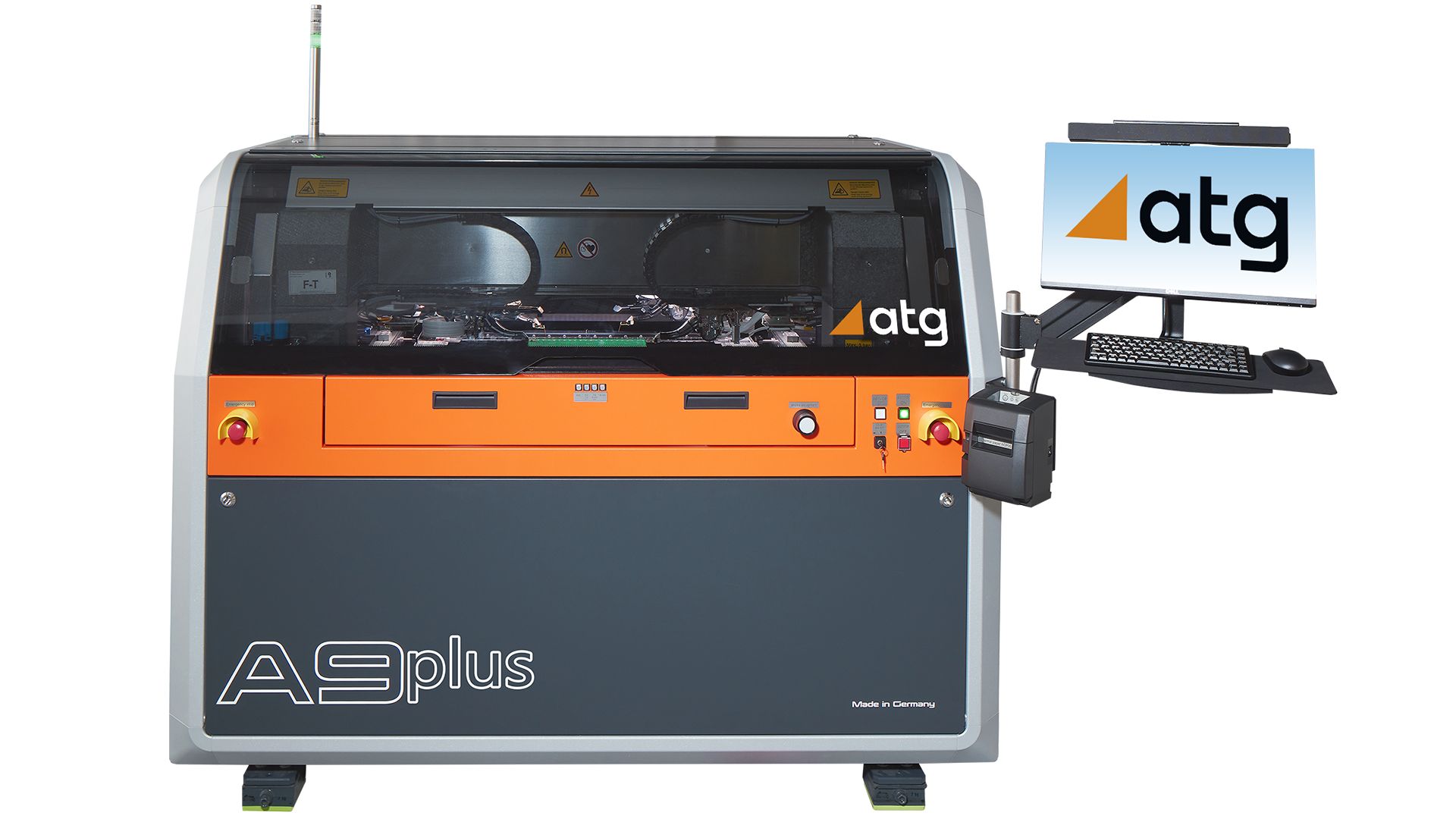

![A9 plus](/globalassets/images/product-areas/bare-board-testing/products/a9-plus-product-image.png?w=1920)
A9 plus
- Productivity 8 test heads with fastest linear drive technology
- Stability High resolution cameras 3 µm / Px.
- Flexibility Supports supstrate like PCB (SLP) applications
Description
The A9 Plus is utilizing the same technology as the A9 and is in addition equipped with a temperature control unit and 4 high-resolution cameras. The system provides the accuracy to test reliably pad sizes down to 25 microns and is optimized for the test of Substrate-like-PCBs and similar products.
Key benefits
- A9 technology with additional temperature control and high resolution cameras for maximum accuracy
Camera resolution of 3 micron per pixel compared to 6 micron of the standard A9.
Specification
8 test heads |
|
Linear motor drives for X-, phi- and Z-axis |
|
Granit base |
|
High-resolution cameras with 3 microns per pixel |
|
Max. test area |
610 mm x 510 mm (24" x 20") |
Max. product size |
640 mm x 535 mm (25.2" x 21.0") |
Test speed |
up to 220 TP/sec (depending on test method) |
4 high-resolution color XGA-cameras |
|
Smallest pad/pitch A9 |
25 µm*(1 mil) / 50 µm (2 mil) (* glass calibration) |
Soft touch contacting |
|
Micro short detection (MSD®) |
|
Pneumatic clamping / tension frame |
|
Options
|
Embedded component test, Test floor integration with Universal Grid systems, High-Speed Kelvin 4 wire test up to 300 mA*, LaTest® (Latent defect) |
