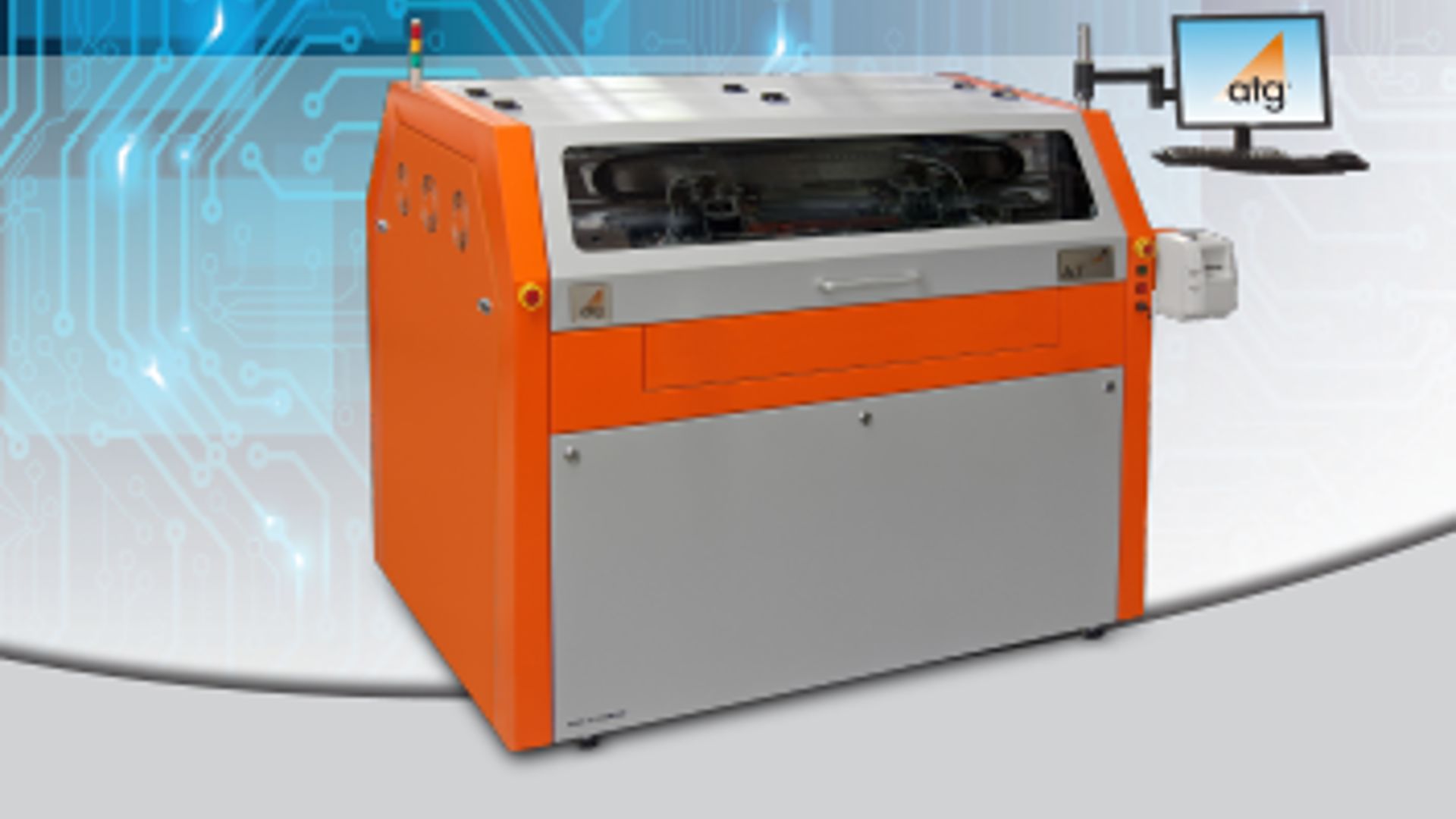

A7-16 Pro

A7-16 Pro

A7-16 Pro

  • Productivity 16 test head system with linear drive technology
  • Stability Suitable for oversized PCBs
  • Flexibility Supports Probecard and Backpanel applications

Description

The A7 Pro is also available with 16 test heads, benefitting from the same technical improvements as the 8 test head version, providing the same high performance level also for larger test areas.

The system is perfectly suited for the high test point counts of server products or probecard designs.





Key benefits

  • 16 head test system with large test area of 24" x 39.4"

The system combines outstanding test speed and high accuracy. It is our best seller for Probe Cards and Backpanel applications.

Brochures

A7-16 Pro

A7-16 Pro

Download

Specification

16 test heads



Linear motor drives for X- and Z-axis



Stepper motor technology for phi-axis



Max. test area

610 mm x 1000 mm (24" x 39.4")

Max. product size

610 mm x 1050 mm (24" x 41.4")

Test speed

up to 260 TP/sec (depending on test method)

4 high-resolution color XGA-cameras



Smallest pad size

50 µm (2 mil)

Smallest pitch

100 µm (4 mil)

Micro short detection (MSD®)



Pneumatic clamping / tension frame





Options

Embedded component test, Test floor integration with Universal Grid systems, High Speed Kelvin 4 wire test up to 300 mA*, LaTest® (Latent defect) and BackDrill testing
