A9 Flying Probe PCB Test System

A9

  • Productivity 8 test heads with fastest linear drive technology
  • Stability Highly flexible shuttle system with tension option
  • Flexibility Advanced back drill and active diode test capability

Description

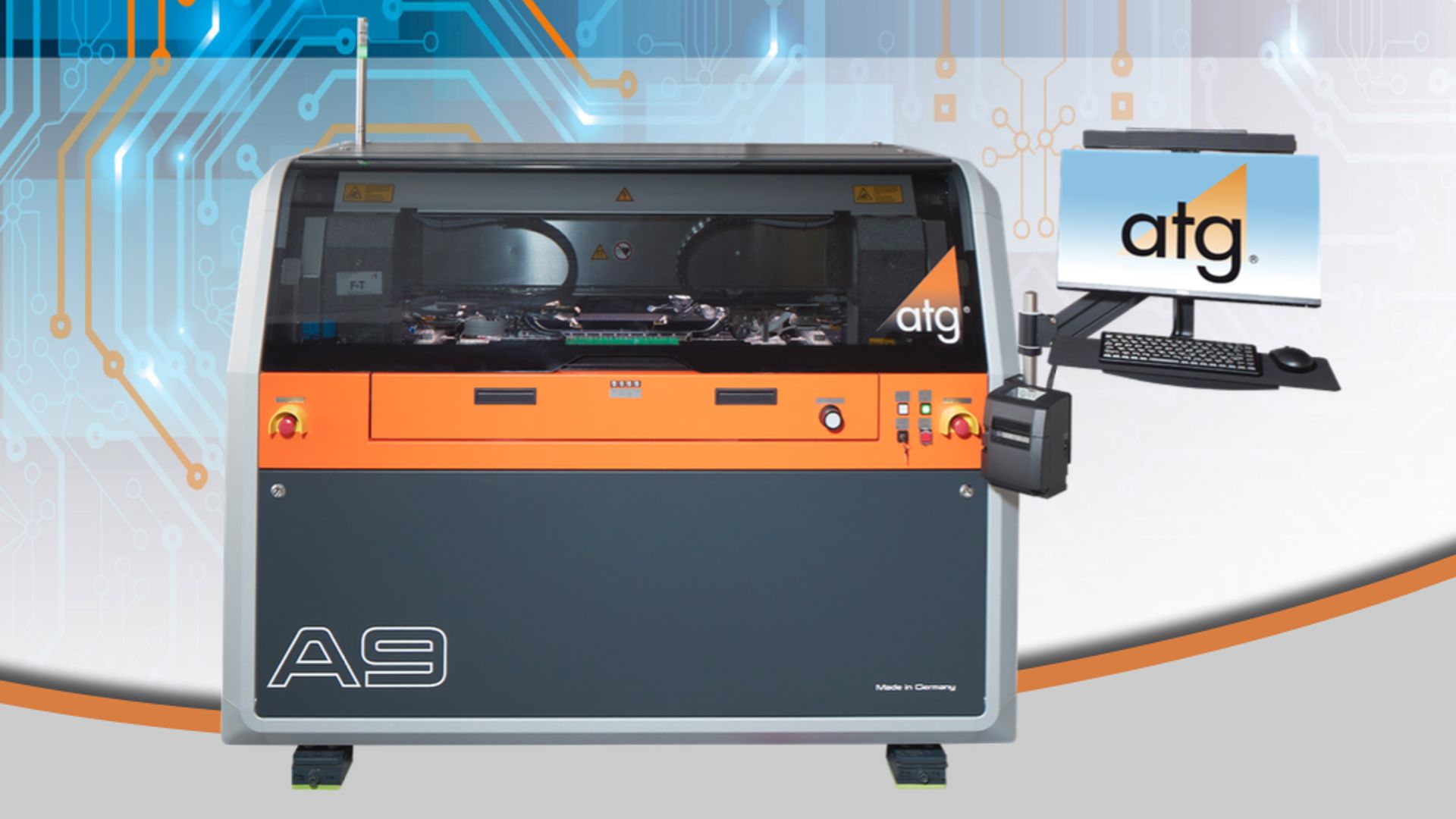

The A9 is our fastest PCB test system with a new powerful drive technology and granite base to ensure high accuracy. Even mid-size quantities of several 100 products can be tested efficiently, avoiding the need for fixture building.

Key benefits

  • Granit base in combination with state of the art linear motor drives for X-, phi- and Z-movement

Outstanding test speed of 25 contacts per second per test head. Improved motion control with highest accuracy for advanced test functionalities like BackDrill test and active component testing.

Specification

8 test heads



Linear motor drives for X-, phi- and Z-axis



Granit base



Max. test area

610 mm x 510 mm (24" x 20")

Max. product size

640 mm x 535 mm (25.2" x 21.0")

Test speed

up to 220 TP/sec (depending on test method)

4 high-resolution color XGA-cameras



Smallest pad/pitch A9

35 µm*(1,4 mil) / 75 µm (3 mil) (* glass calibration)

Soft touch contacting



Micro short detection (MSD®)



Pneumatic clamping / tension frame



Options

Embedded component test, Test floor integration with Universal Grid systems, High Speed Kelvin 4 wire test up to 300 mA*, LaTest® (Latent defect)
