LM1000

LM1000

LM1000

  • Productivity High-accuracy step-tester for universal and dedicated fixture designs
  • Stability 2 cameras for top/bottom offset compensation
  • Flexibility Advanced 4-wire, µShort and voltage drop measurement methods

Description

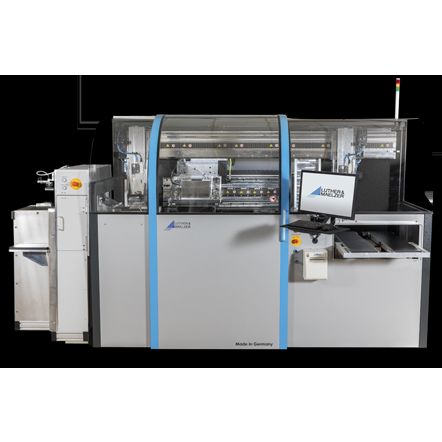

The LM1000 is a highly precise compact step tester for the electrical test of HDI bare boards in mass production.

The solid granite frame provides the highest accuracy. Two high-resolution cameras (top and bottom) scan the PCB and enable the automatic micro-adjustment of the fixtures.

The dual shuttle and a dual vacuum grabber – driven by fast linear motors – provide high throughput multi-tasking product handling. The machine runs either with universal fixtures up to 6.4″ x 9.6″ test area or with a dedicated fixture.

This gives the customer the possibility to choose the best price-performance technology for the specific application without being limited by the equipment.

Key benefits

  • Fully automated step-tester for universal and dedicated fixtures
  • Test area of 9.6” x 6.4” (244 mm x 164 mm), max product size 400 mm x 300 mm
Double Shuttle for highest throughput
Granite base to ensure highest accuracy
Double-sided high-resolution camera system
Automatic micro-adjustment
High speed Kelvin 4-wire test
Cleaning Station
Extended inspection methods
Repair s/w with barcode support

Brochures

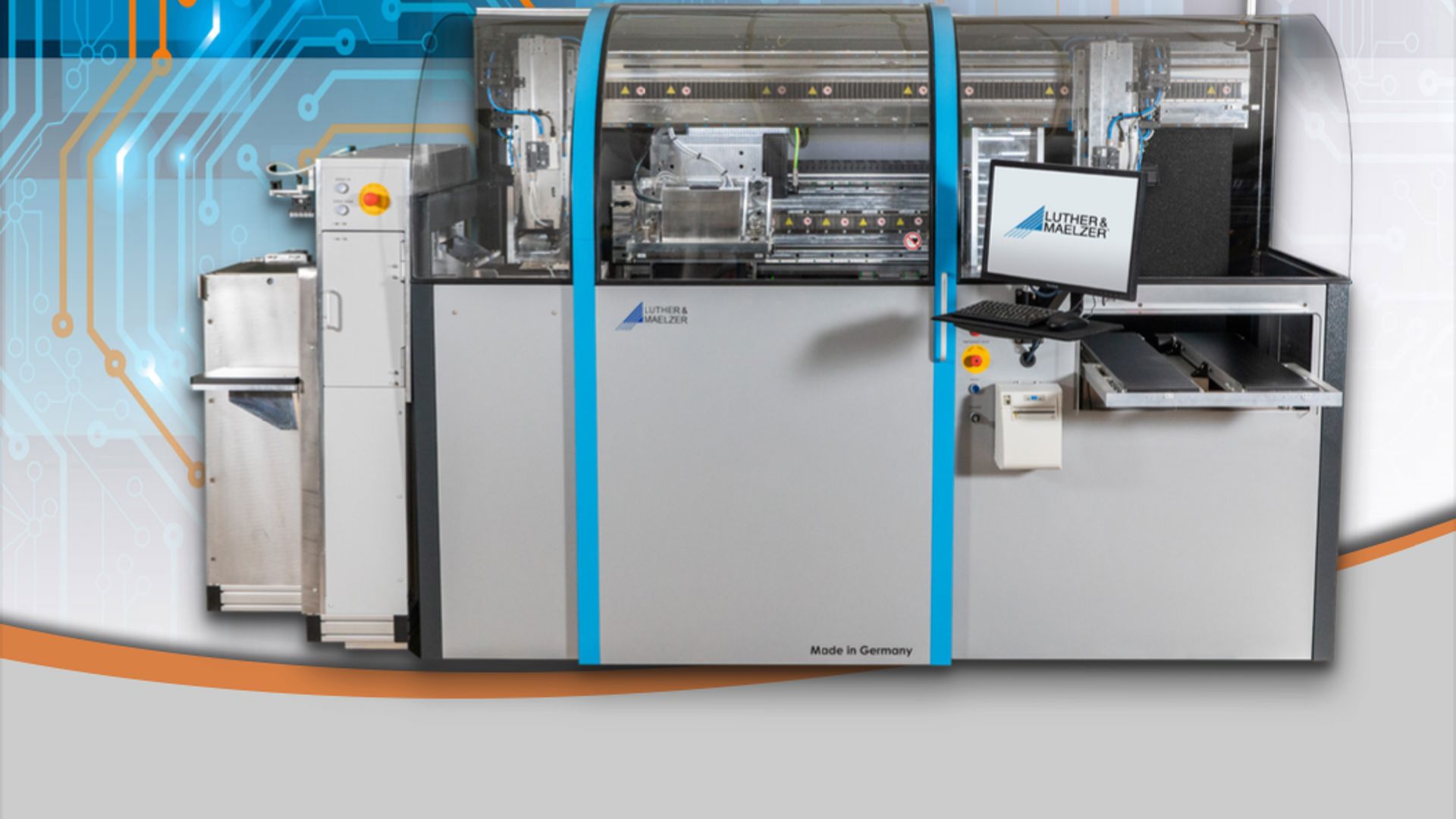

LM1000

LM1000

Download

Specification

Max. # Test Points

49,152 per side (OD 35 mil)

Continuity test

30 Ω - 10 KΩ

Short test

100 KΩ - 100 MΩ

Test area

244 x 163 mm (9.6" x 6.4")

Isolate Voltage

35 V – 250 V DC

4-wire Kelvin

Range 0 mΩ - 50 KΩ  with a tolerance

(± 3 mΩ), up to 1.500 measurement/sec

(depending on accuracy and board size)
Extended inspection methods Leakage, Spare, µShort, 4W open, 4W resistor, measurement of resistor divider ratio

Services

Service for Bare board testing

Superior service for superior performance

Our service offering for our advanced Bare board testing is a key part of our commitment to our customers. Our objectives are to maximize throughput, performance and yield for the lifetime of every system installed.
